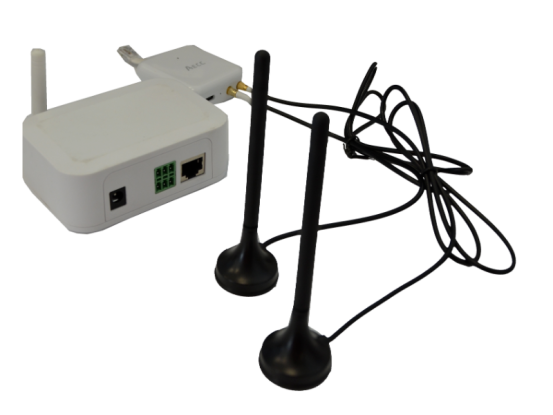

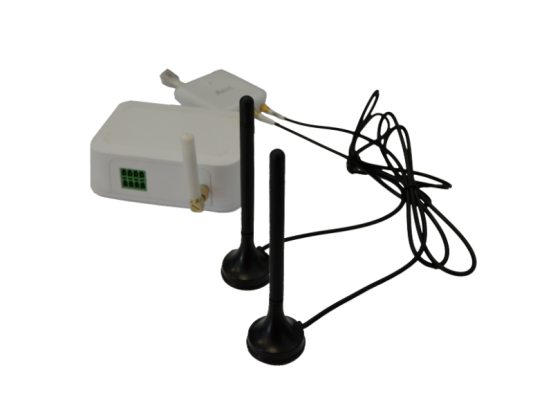

FoxESS LoRa Meter for Avocado P100 / H1 / P3

What does a FoxESS LoRa Meter do?

The meter continuously measures:

• Electricity imported from the grid
• Electricity exported to the grid
• Self-consumption within the home or building

These measurement data are transmitted wirelessly via LoRa (Long Range Radio) to the FoxESS inverter or energy management system. This allows the system to control self-consumption, battery charging and export limitation much more accurately.

Benefits

• No need for a long communication cable
• Long wireless range
• Supports export limiting
• Improved battery control
• Accurate energy monitoring

Recommended applications

• Inverter installed in a garage or technical room
• Main electricity meter located at the street-facing side of the property
• Distances greater than 20–30 metres
• Where running an RS485 cable is not possible
• Renovation projects where cutting and drilling need to be avoided

With the FoxESS LoRa Meter, you can measure energy at the appropriate location — the grid connection point — without having to run a long communication cable. This saves installation time and helps ensure that the battery, EMS and export limit function correctly.
